Diborane Jastrow optimization

Postby Vladimir_Konjkov » Wed Aug 23, 2017 5:39 am

I find out that diborane molecule https://en.wikipedia.org/wiki/Diborane is very hard system to optimize JASTROW and get precise DMC energy result.
Conventional geometry is:
Code: Select all
0 1
 B        -1.660868686000      0.000000000000      0.000000000000
 B         1.660868686000      0.000000000000      0.000000000000
 H         0.000000000000      0.000000000000      1.842901487000
 H         0.000000000000      0.000000000000     -1.842901487000
 H        -2.744534842000      1.964670992000      0.000000000000
 H        -2.744534842000     -1.964670992000      0.000000000000
 H         2.744534842000     -1.964670992000      0.000000000000
 H         2.744534842000      1.964670992000      0.000000000000


Pure madmin JASTROW optimization is very unstable as long as we do not exclude hydrogen atoms from e-e-n term.
After emin optimization DMC gave very/enormously large N_corr value.
For the dtdmc = 0.00667 = 1/(6*Z^2) au, N_corr is 71.69 +/- 14.66.

dtdmc * N_corr = 0.48 au

initial JASTROW in casl format is:
Code: Select all
JASTROW:
  TERM 1:
    Rank:
      2
      0
    Rules:
      1-1=2-2
    e-e basis:
      Type: natural power
      Order: 8
    e-e cusp: T
    e-e cutoff:
      Type: alt polynomial
  TERM 2:
    Rank:
      1
      1
    Rules:
      n3=n4
      n3=n5
      n3=n6
      n3=n7
      n3=n8
      n1=n2
      1=2
    e-n basis:
      Type: natural power
      Order: 8
    e-n cutoff:
      Type: alt polynomial
  TERM 3:
    Rank:
      2
      1
    Rules:
      n3=n4
      n3=n5
      n3=n6
      n3=n7
      n3=n8
      n1=n2
      1-n3=2-n3
      1-n1=2-n1
      1-1=2-2
    e-e basis:
      Type: natural power
      Order: 4
    e-n basis:
      Type: natural power
      Order: 4
    e-n cutoff:
      Type: alt polynomial
  Title: ''


It seems to me that the e-e-n JASTROW term for the light atoms gives very poor results, but is it worth to apply it if the molecule consists only of light atoms like B and H.
Which set of atoms can be excluded from e-e-n term optimization?

Any suggestions.

Best, Vladimir.
In Soviet Russia Casino play you.
Vladimir_Konjkov

Posts: 113
Joined: Wed Apr 15, 2015 3:14 pm

Re: Diborane Jastrow optimization

Postby Pablo_Lopez_Rios » Wed Aug 23, 2017 8:43 am

Hi Vladimir,

How many configurations are you using for the optimization? Have you tried fixing the Jastrow cut-off values (I would expect L=3-5 a.u. to be OK values for isotropic terms in molecules)?

Also, you are treating all six hydrogens as equivalent, but to me it looks like n3=n4 and n5=n6=n7=n8 would better describe the symmetry of the molecule.

The statistical efficiency of DMC depends on the quality of the trial wave function, so it's probably a good idea to make sure you have a good Jastrow factor before attempting to converge your DMC results.

Best,
Pablo
Hey there! I am using CASINO.
Pablo_Lopez_Rios

Posts: 38
Joined: Thu Jan 30, 2014 1:25 am

Re: Diborane Jastrow optimization

Postby Vladimir_Konjkov » Wed Aug 23, 2017 4:38 pm

Perhaps I understood why this is so.

Caperley proved in https://link.springer.com/article/10.1007/BF02628307 that VAR_DMC ~ 2 (E_VMC - E_DMC)/dtdmc, keep in a mind that VAR_DMC = N_corr * VAR_VMC.
where N_corr - DMC N_corr
One can rewrite equation as:

N_corr * dtdmc = 2 (E_VMC - E_DMC)/VAR_VMC

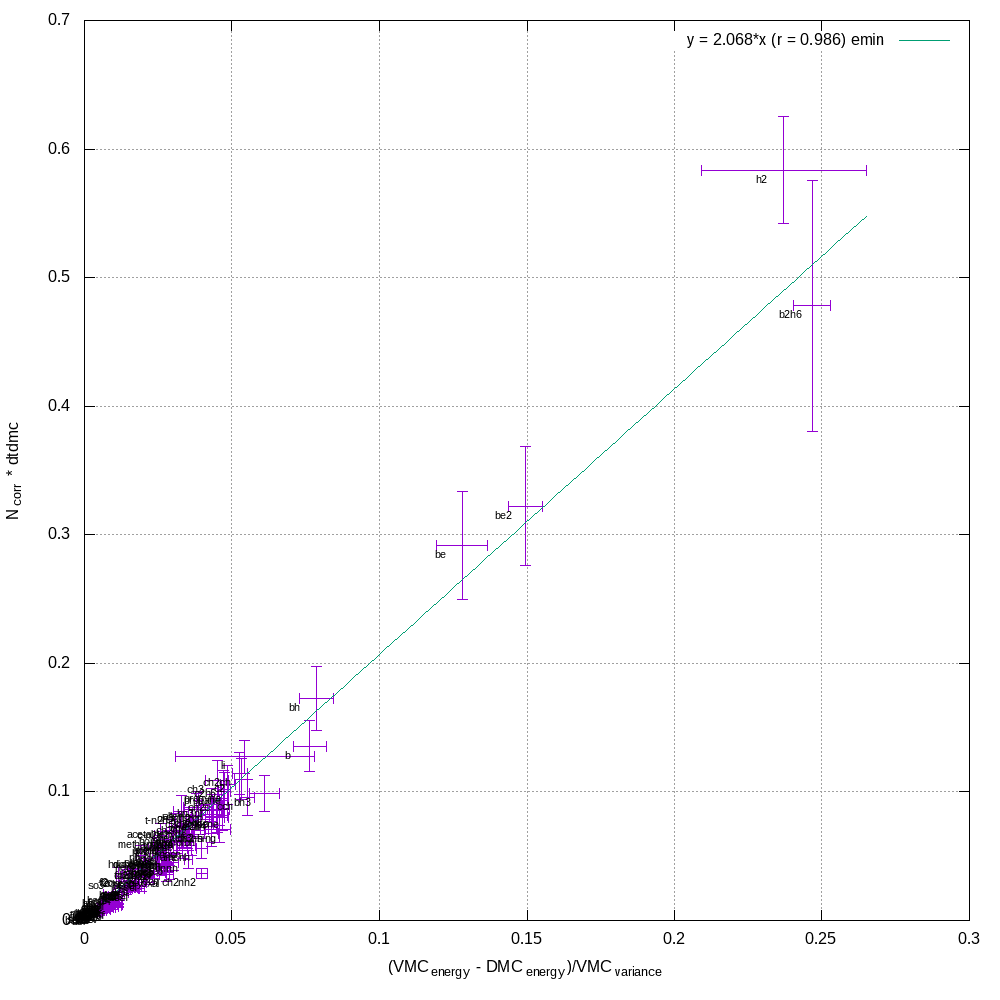

If we assume that DMC and VMC are size consistent methods (why not?) then for the system of N equivalent atoms numerator and denominator should increase proportionately and N_corr * dtdmc remains the same. if I neglect the presence of B atoms, then N_corr * dtdmc for H2 and B2H6 shoul be the same (look at graph).

But existence of B atoms requests mush smaller dtdmc (25 times smaller than for H atom), so I've got very large N_corr.

Thus transition metal hydrides like https://en.wikipedia.org/wiki/Potassium ... idorhenate are very bad case for QMC.

Best, Vladimir.

PS. sup and sub BBCode tags should be very usefull in this forum.
Attachments
In Soviet Russia Casino play you.
Vladimir_Konjkov

Posts: 113
Joined: Wed Apr 15, 2015 3:14 pm

Re: Diborane Jastrow optimization

Postby Pablo_Lopez_Rios » Wed Aug 23, 2017 7:19 pm

Hi Vladimir,

Yes, you quote is a well-known result, which I was in fact making use of in my earlier reply -- E_DMC itself is independent of the Jastrow factor (it does not change the nodes of the wave function), but the better the Jastrow factor, the smaller the difference E_VMC - E_DMC, the smaller the variance of the DMC sample of local energies, and the more efficient your DMC calculation is.

The 1/dtdmc factor is clearly problematic for transition metals, as you say, and for this reason these are usually treated using pseudopotentials. But at Z=5 I don't see that Boron could really be considered a difficult case for all-electron DMC.

Going back to your optimization runs, I'd be interested in knowing what specific trouble you are having. Have you tried the "Rules" I suggested? How many configurations are there in your optimization sample?

Best,
Pablo
Hey there! I am using CASINO.
Pablo_Lopez_Rios

Posts: 38
Joined: Thu Jan 30, 2014 1:25 am

Re: Diborane Jastrow optimization

Postby Vladimir_Konjkov » Wed Aug 23, 2017 8:29 pm

Pablo_Lopez_Rios wrote:Hi Vladimir,

Yes, you quote is a well-known result, which I was in fact making use of in my earlier reply -- E_DMC itself is independent of the Jastrow factor (it does not change the nodes of the wave function), but the better the Jastrow factor, the smaller the difference E_VMC - E_DMC, the smaller the variance of the DMC sample of local energies, and the more efficient your DMC calculation is.

The 1/dtdmc factor is clearly problematic for transition metals, as you say, and for this reason these are usually treated using pseudopotentials. But at Z=5 I don't see that Boron could really be considered a difficult case for all-electron DMC.

Going back to your optimization runs, I'd be interested in knowing what specific trouble you are having. Have you tried the "Rules" I suggested? How many configurations are there in your optimization sample?

Best,
Pablo


Yes, Pablo. I've tried a different types of JASTROW optimizations and yours and r/(r^b+a) power for e-e term as well. This is the best result that can be obtained. No way to improve it.
This molecule has too little correlation energy.
What is the correlation length for the exact JASTROW? The more precise JASTROW the bigger correlation length.

Best, Vladimir.
In Soviet Russia Casino play you.
Vladimir_Konjkov

Posts: 113
Joined: Wed Apr 15, 2015 3:14 pm

Re: Diborane Jastrow optimization

Postby Pablo_Lopez_Rios » Wed Aug 23, 2017 9:11 pm

Hi Vladimir,

After a quick go at this molecule I get:

Code: Select all
VMC #1: E     = -52.828(4) ; var  = 11.0(2) (parameters.0.casl)
VMC #2: E     = -53.1826(7) ; var  = 0.672(8) (parameters.1.casl)
VMC #3: E     = -53.1823(7) ; var  = 0.68(1) (parameters.2.casl)
VMC #4: E     = -53.2012(7) ; var  = 0.801(8) (parameters.3.casl)
VMC #5: E     = -53.2027(7) ; var  = 0.81(2) (parameters.4.casl)


which looks pretty reasonable to me. What do you get?

Pablo
Hey there! I am using CASINO.
Pablo_Lopez_Rios

Posts: 38
Joined: Thu Jan 30, 2014 1:25 am

Re: Diborane Jastrow optimization

Postby Vladimir_Konjkov » Thu Aug 24, 2017 9:05 am

Accidentally in my molecular database B2H6 geometry was in Bohr, but other 140 molecules geometry in Angstrom.
Automated script doesn't took it into account. That's an epic fail. I'am sorry.

For the right geometry I've got:
Code: Select all
VMC #1: E     = -52.78(3) ; var  = 4.1(1) (parameters.0.casl)
VMC #2: E     = -53.14(1) ; var  = 0.98(2) (parameters.1.casl)
VMC #3: E     = -53.218(9) ; var  = 0.59(2) (parameters.2.casl)
VMC #4: E     = -53.199(9) ; var  = 0.56(2) (parameters.3.casl)
VMC #5: E     = -53.220(8) ; var  = 0.52(1) (parameters.4.casl)
VMC #6: E     = -53.221(9) ; var  = 0.51(1) (parameters.5.casl)
VMC #7: E     = -53.221(8) ; var  = 0.54(3) (parameters.6.casl)
VMC #8: E     = -53.207(8) ; var  = 0.53(1) (parameters.7.casl)
VMC #9: E     = -53.226(9) ; var  = 0.53(2) (parameters.8.casl)
VMC #10: E     = -53.22(1) ; var  = 0.48(2) (parameters.9.casl)


and reasonable DMC energy, N_corr, etc...

Thank you, Pablo for the productive discussion.

Vladimir.
In Soviet Russia Casino play you.
Vladimir_Konjkov

Posts: 113
Joined: Wed Apr 15, 2015 3:14 pm

Re: Diborane Jastrow optimization

Postby Pablo_Lopez_Rios » Thu Aug 24, 2017 9:09 am

Glad that everything works : )

Best,
Pablo
Hey there! I am using CASINO.
Pablo_Lopez_Rios

Posts: 38
Joined: Thu Jan 30, 2014 1:25 am
